12-1 Install posterior body cover
Required Parts:
C05 Posterior body cover x1 | Screw No. 6 (M3_L7 TT30075) x3 |
Box Y | Box of screws |
If the instructional video does not appear, please refresh/reload the page, or click the link below:
Install posterior body cover

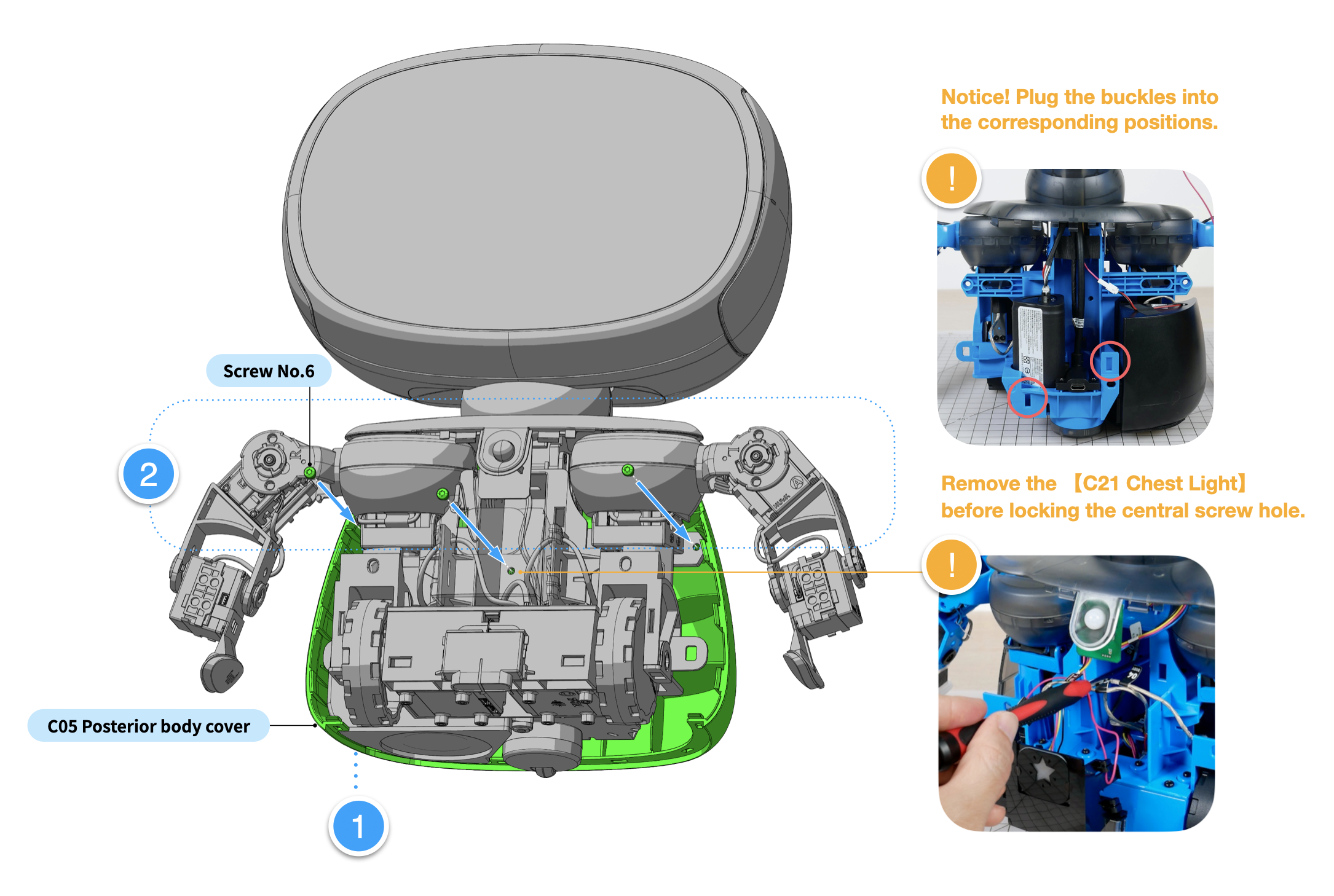

- Slide**【C05 posterior body cover】**over rear of robot, lining up guides and screw holes as shown. ⚠ Note! Make sure to align as shown.
- Fasten with 3 pieces**【Screw No. 6 (M3_L7 TT30075)】. If desired, remove【C21 Chest Light】**before installing center screw to improve access, then reinstall.
12-2 Install chest light cover
Required Parts:
D2 Chest light cover stickers set (select one) | A6 Tape x1 |
Bag H of Box Z | Box of screws |
If the instructional video does not appear, please refresh/reload the page, or click the link below:
Install chest light cover

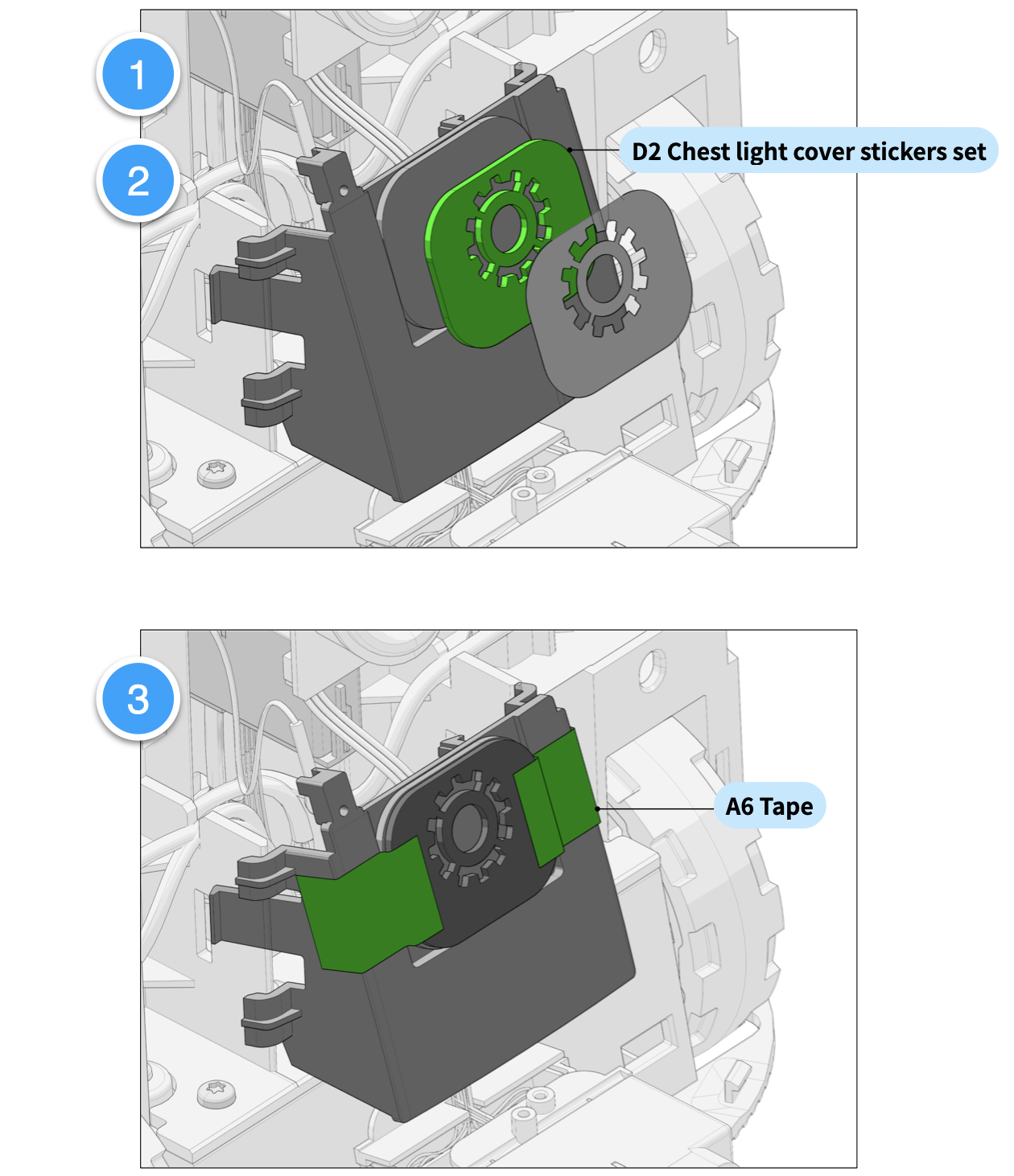

- Select **【D2 Chest Light Cover Sticker】**and remove protective film.
- Place**【D2 Chest Light Cover Sticker】** into holder. ⚠️ Note! Observe orientation of cover; wider section is at bottom.
- Secure cover to holder by adhering with**【A6 Tape】** on each side as shown.
12-3 Install anterior body cover
Required Parts:
C04 Anterior body cover x1 |
Box Y |
If the instructional video does not appear, please refresh/reload the page, or click the link below:
Install anterior body cover

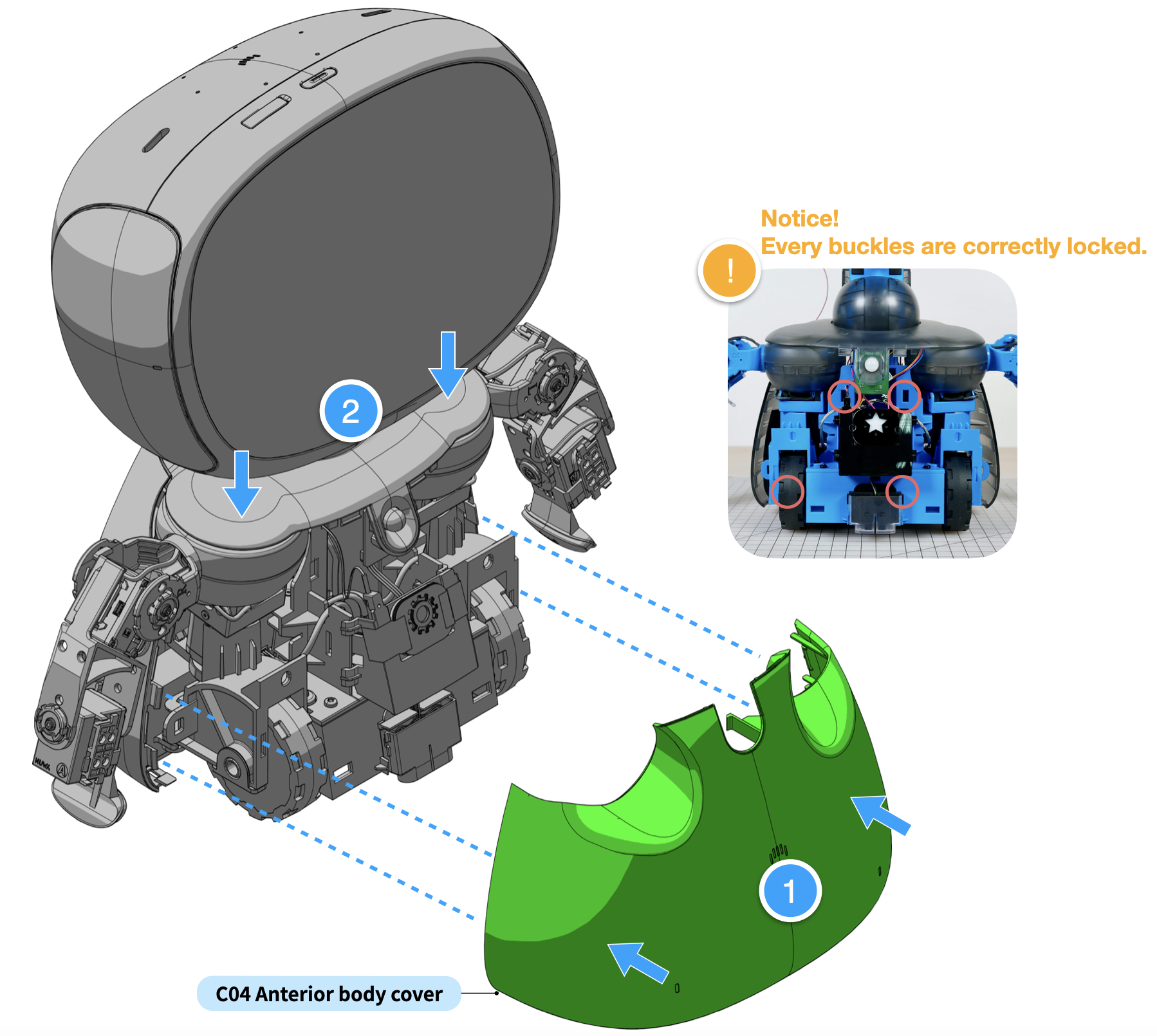

- Line up clips of**【C04 Anterior Body Cover】**with slots in body and snap into place as shown. ⚠️ Note! Ensure all clips are securely engaged.
- Press**【C06 Body Cover (top)】**down onto main body shell and snap into place as shown. Work around the top cover to confirm all snaps are engaged.
12-4 Install bottom plate
Required Parts:
C07 Bottom body plate x1 |
Box Y |
If the instructional video does not appear, please refresh/reload the page, or click the link below:
Install bottom body plate

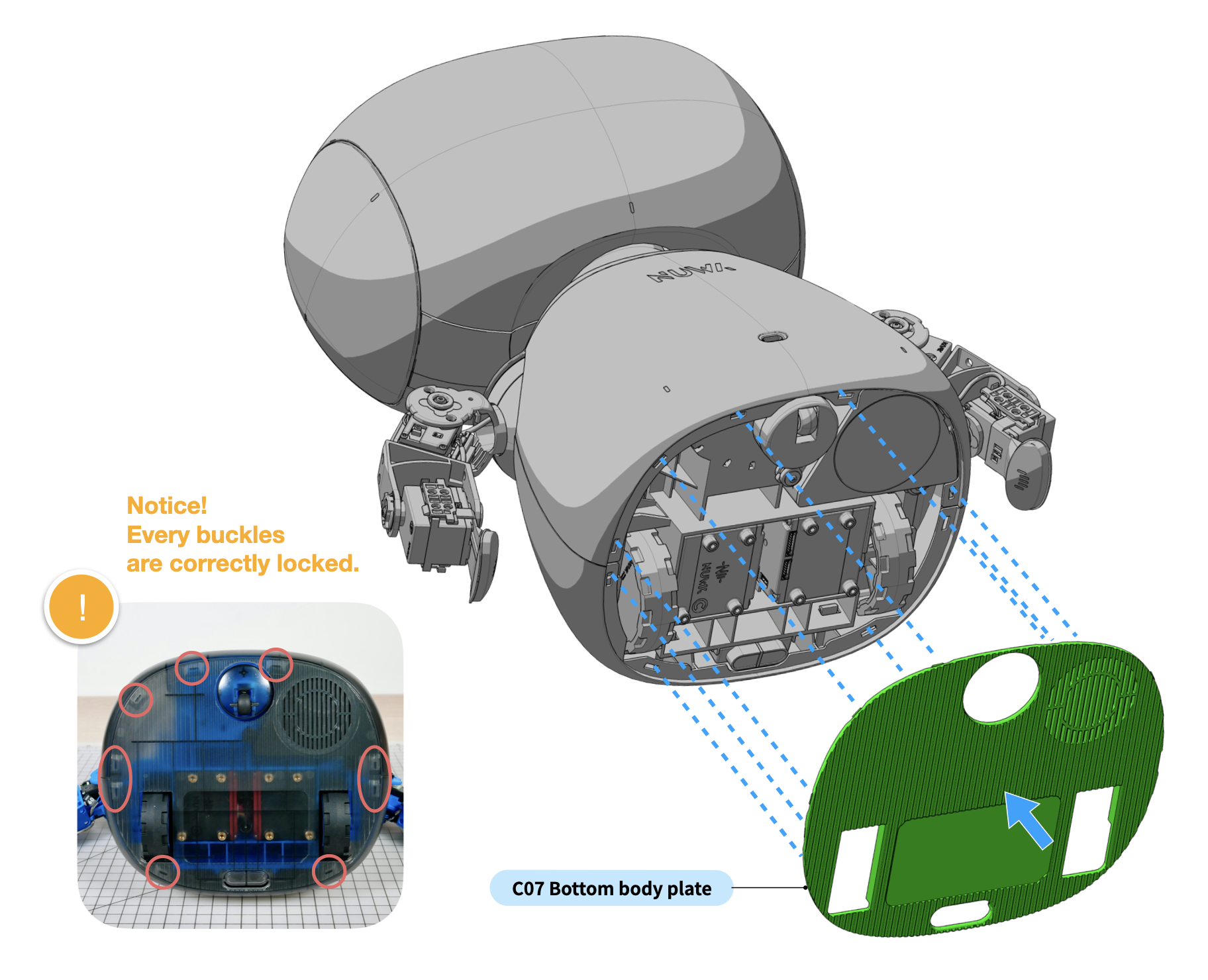

- Lay robot face down as shown and press**【C07 Bottom Body Plate】**into matching slots. ⚠️ Note! Ensure all snaps are fully engaged.
- Adhere serial number sticker from box to 【C07 Bottom Body Plate】.
