06-1 Install right arm assembly -1
Required Parts:
Right arm assembly | Body part | Screw No. 9 (M2_L6 MM20060) x4 |
Box of screws | ||
If the instructional video does not appear, please refresh/reload the page, or click the link below:
Install right arm assembly -1

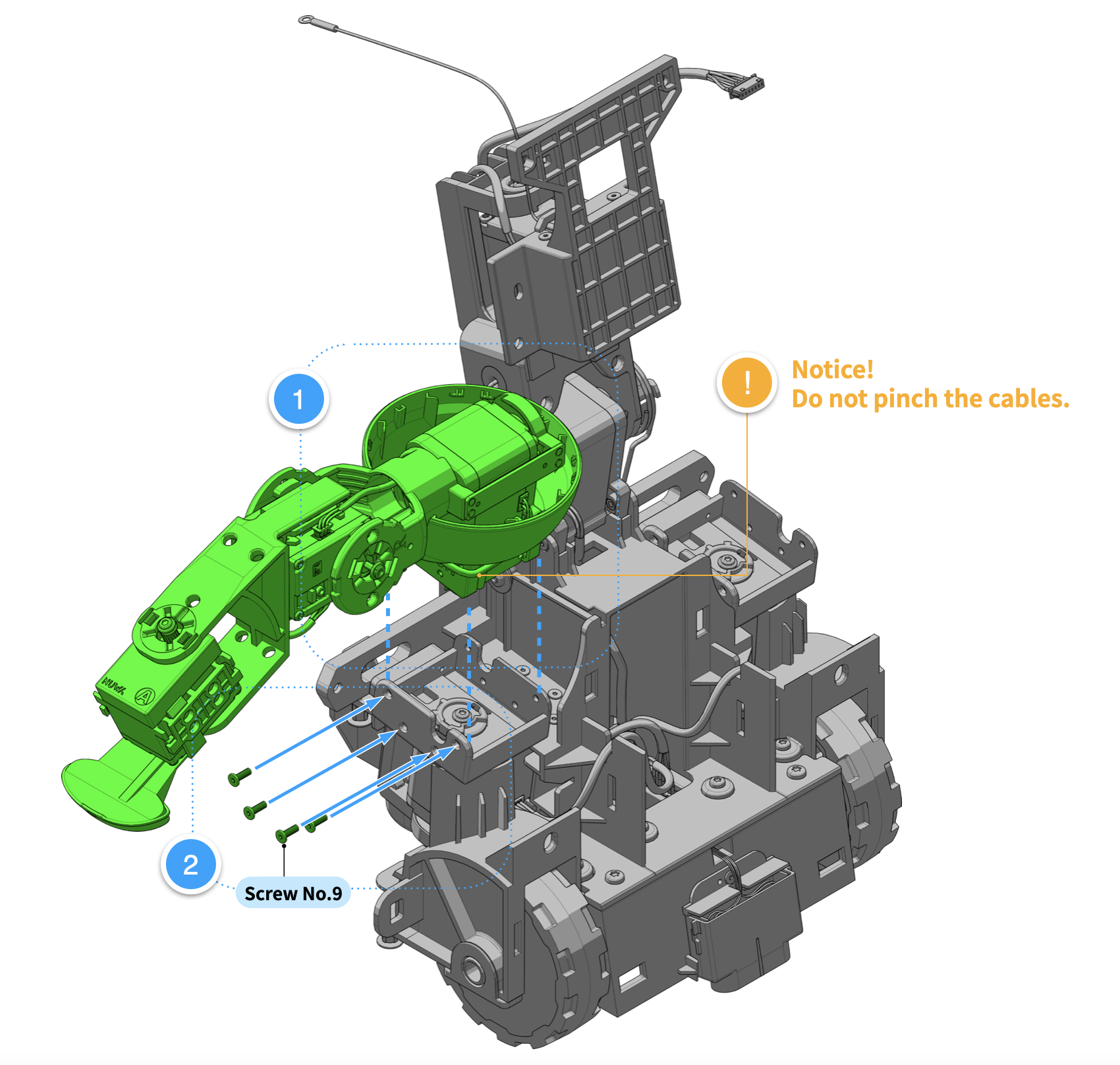

- Insert**【SM04 Servo Motor (ID04)】of【Right Arm assembly】into the right-side 【F7 Shoulder Joint (base)】. ** ⚠Note! Be careful not to interchange the arms. Observe ‘L’ and ‘R’ letters on shoulders and confirm facing of robot to ensure correct placement. ⚠ Note! Do not pinch cables between the assemblies. See photos for acceptable cable location.
- Fasten servo motor to base with 4 pieces**【Screw No. 9 (M2_L6 MM20060)】**.
06-2 Install right arm assembly -2
Required Parts:
A6 Tape | Screw No. 9 (M2_L6 MM20060) x4 |
Box of screws | Box of screws |
If the instructional video does not appear, please refresh/reload the page, or click the link below:
Install right arm assembly -2

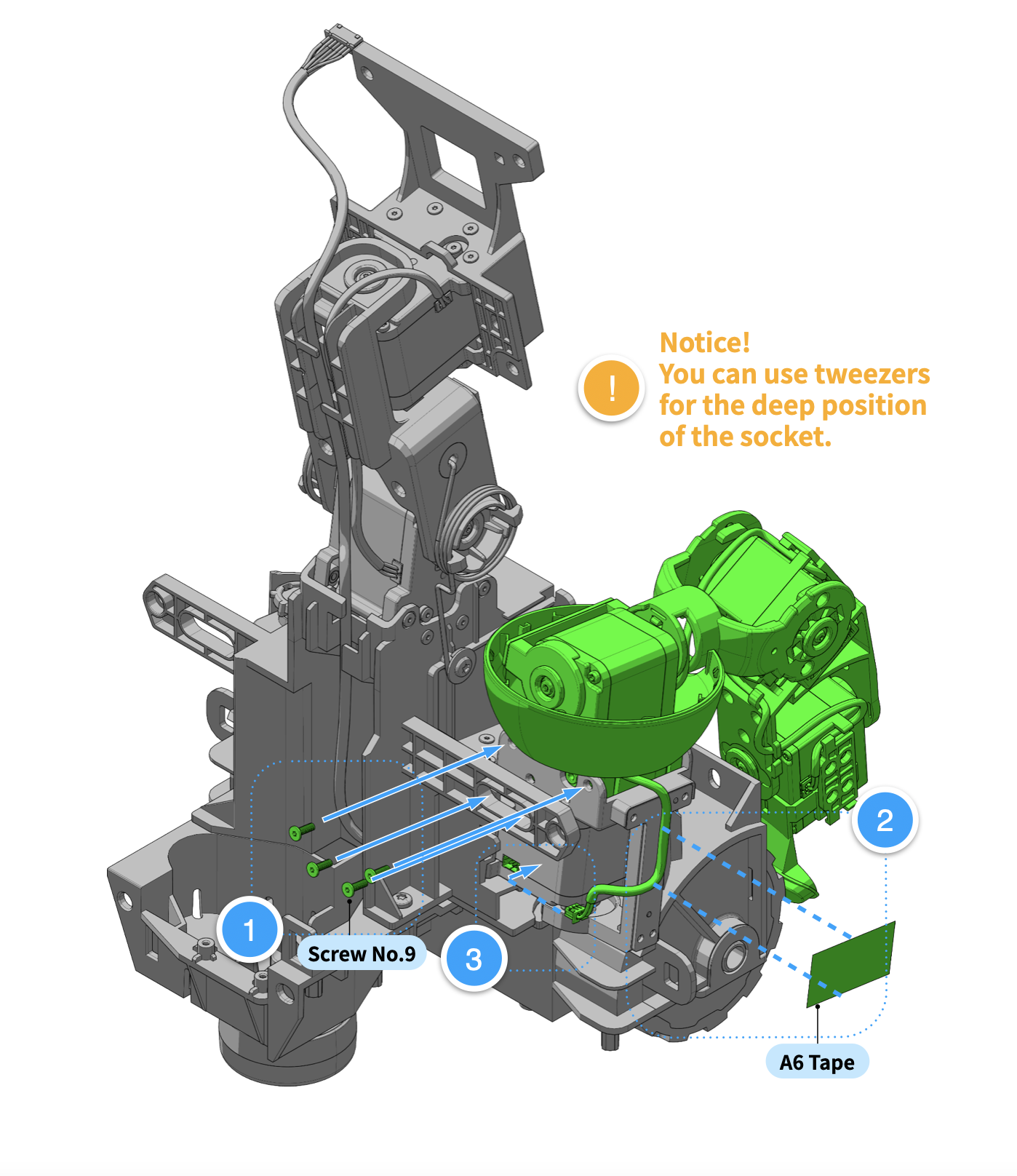

- Fasten opposite side of servo to F7 shoulder base with 4 pieces**【Screw No. 9 (M2_L6 MM20060)】**.
- Plug【Connection Cable 07 ARM】 into socket at back of【SM03 Servo Motor (ID03)】.
- Secure**【Connection Cable 07 ARM】** to the outer side of**【F7 Shoulder Joint (base)】** with**【A6 Tape】**. ⚠Note! Make sure **connection cable is firmly plugged in. ** ⚠Note! Use tweezers to aid with plug placement in hard-to-reach location.
Right arm part installation finished!

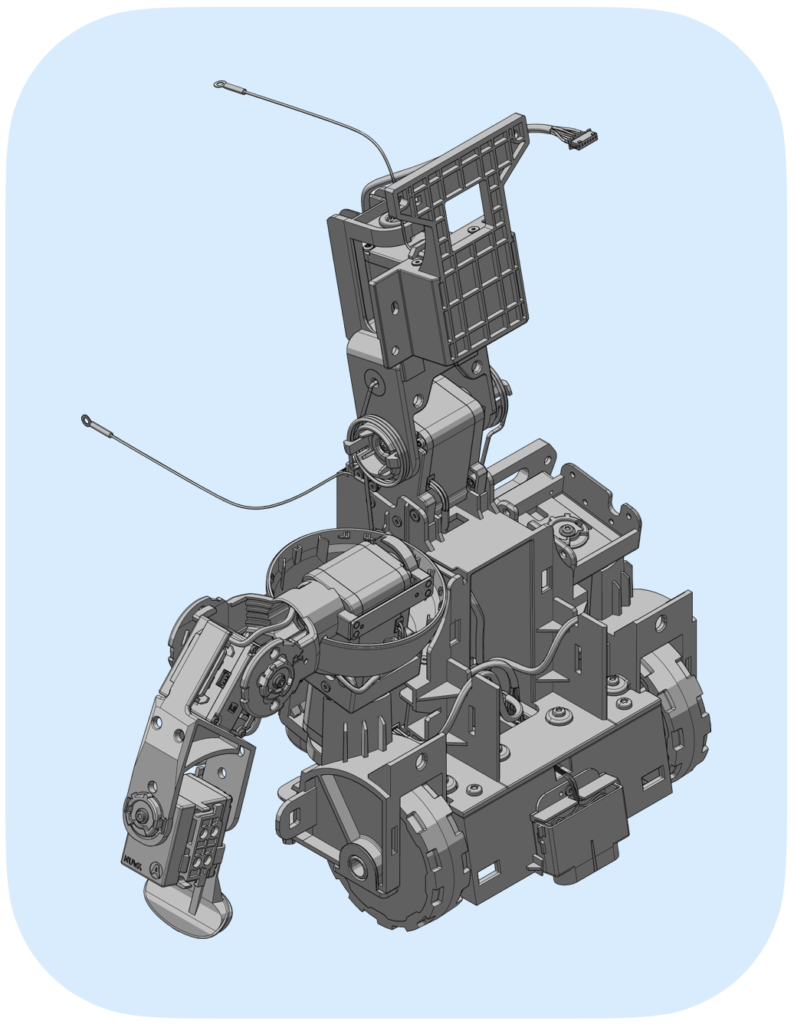

Finished Assembly
06-3 Install left arm assembly -1
Required Parts:
Left arm part | Body part | Screw No. 9 (M2_L6 MM20060) x4 |
Box of screws | ||
If the instructional video does not appear, please refresh/reload the page, or click the link below:
Install left arm assembly -1
- Insert**【SM08 Servo Motor (ID08)】of【Left Arm assembly】**into the left-side 【F7 Shoulder Joint (base)】. ⚠Note! Be careful not to interchange the arms. Observe ‘L’ and ‘R’ letters on shoulders and confirm facing of robot to ensure correct placement. ⚠Note! Do not pinch cables between the assemblies. See photos for acceptable cable location.
- Fasten servo motor to base with 4 pieces**【Screw No. 9 (M2_L6 MM20060)】**.
06-4 Install left arm assembly -2
Required Parts:
A6 Tape | Screw No. 9 (M2_L6 MM20060) x4 |
Box of screws | Box of screws |
If the instructional video does not appear, please refresh/reload the page, or click the link below:
Install left arm assembly -2

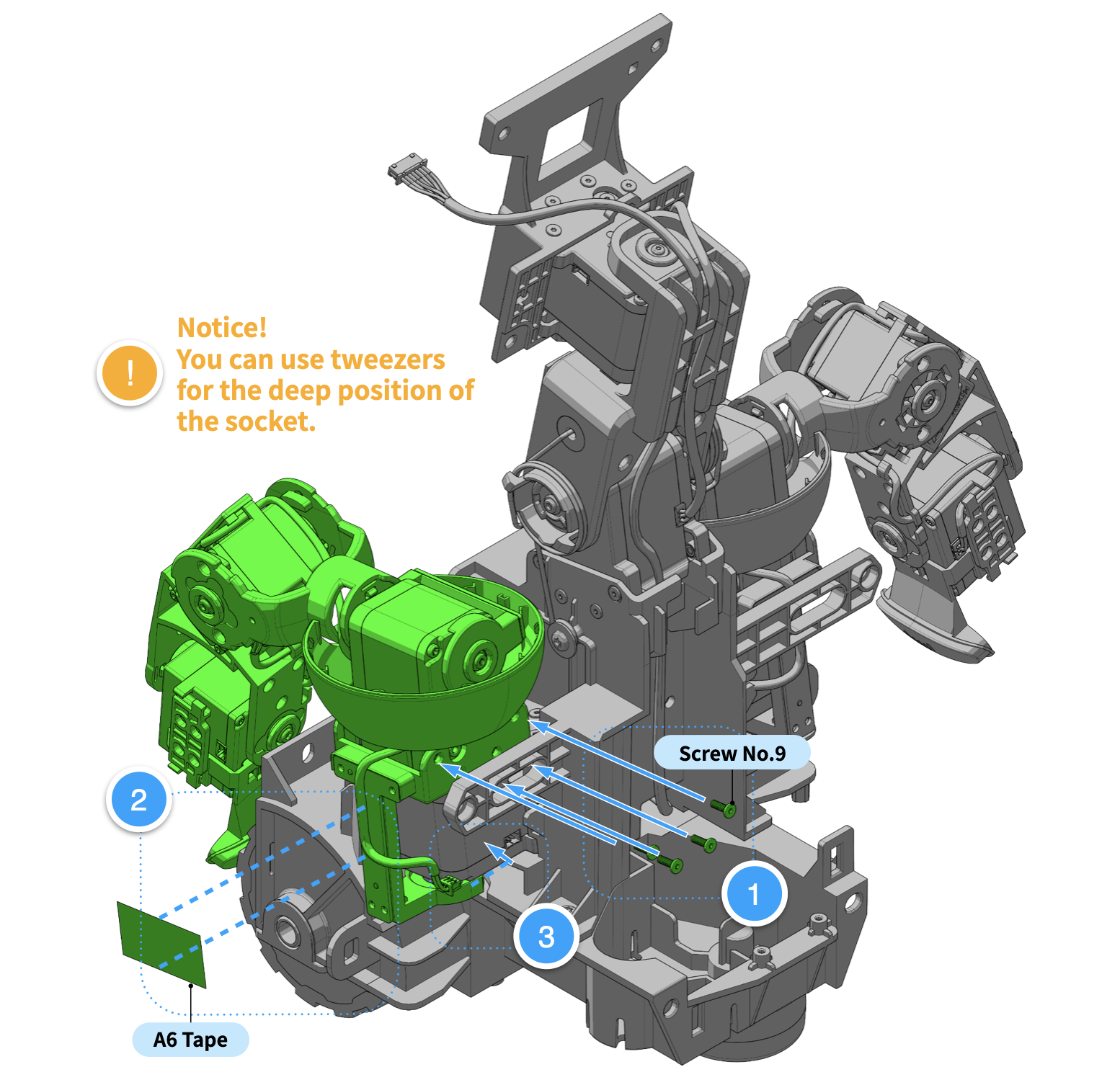

- Fasten opposite side of servo to F7 shoulder base with 4 pieces**【Screw No. 9 (M2_L6 MM20060)】**.
- Plug【Connection Cable 07 ARM】 into socket at back of【SM07 Servo Motor (ID07)】.
- Secure**【Connection Cable 07 ARM】** to the outer side of**【F7 Shoulder Joint (base)】** with**【A6 Tape】**. ⚠Note! Make sure **connection cable is firmly plugged in. ** ⚠Note! Use tweezers to aid with plug placement in hard-to-reach location.
Left arm part installation finished!
