11. Install Covers｜Head

11-1 Close head cover

If the instructional video does not appear, please refresh/reload the page, or click the link below:

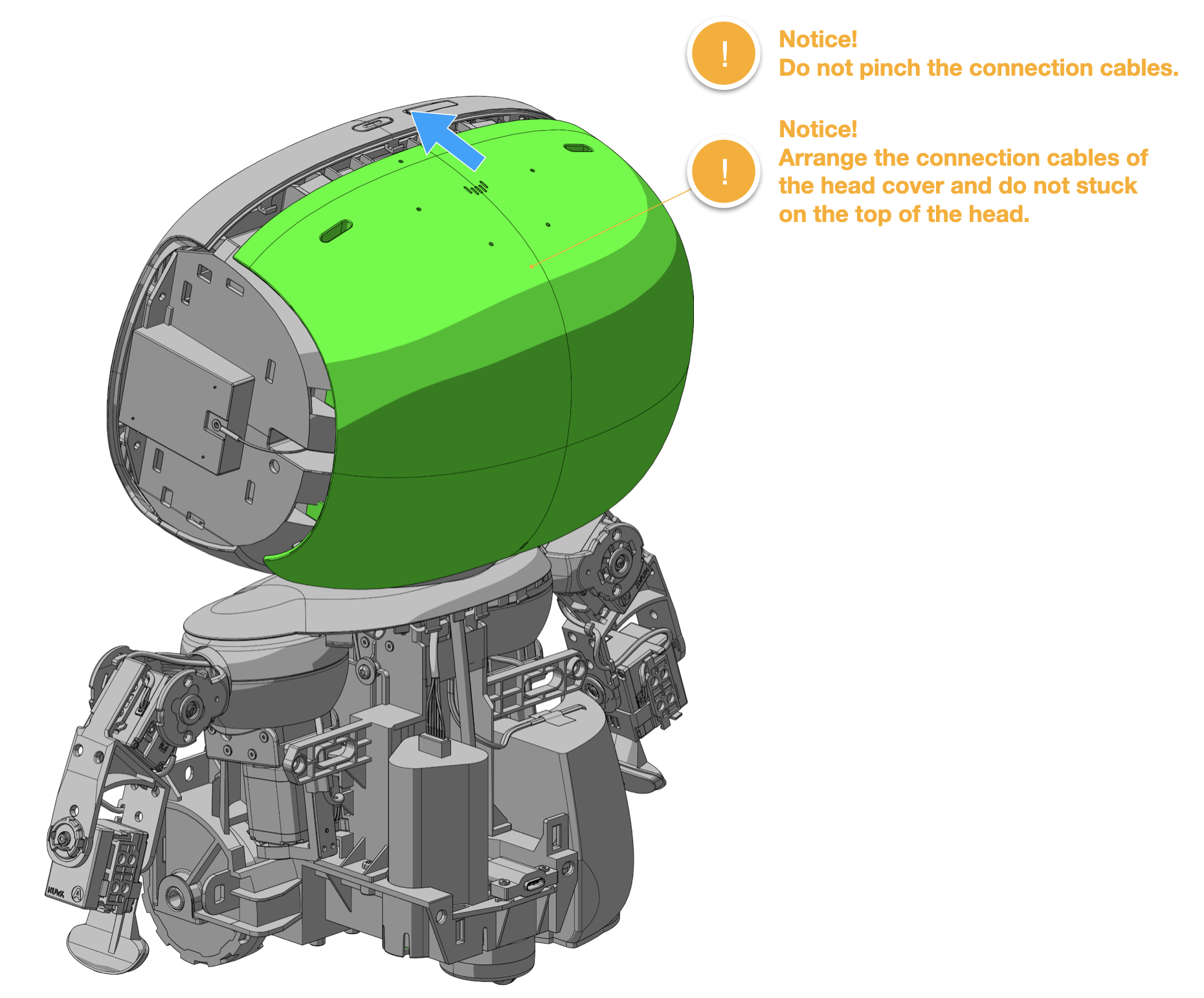

Slide**【C02 Head cover/ microphone array part】** over the head and and neck assemblies and snap into place as shown. ⚠️ Note! Do not pinch connection cables. ⚠️ Note! Fold 【Connection Cable 11 NECK】, 【Connection Cable 17 HEAD】 into the back of the head to avoid pinching. Do not leave spare cable on top of the head.

Head cover assembly finished!

C03 Cheek plates x2

Box Y (Install either one)

If the instructional video does not appear, please refresh/reload the page, or click the link below:

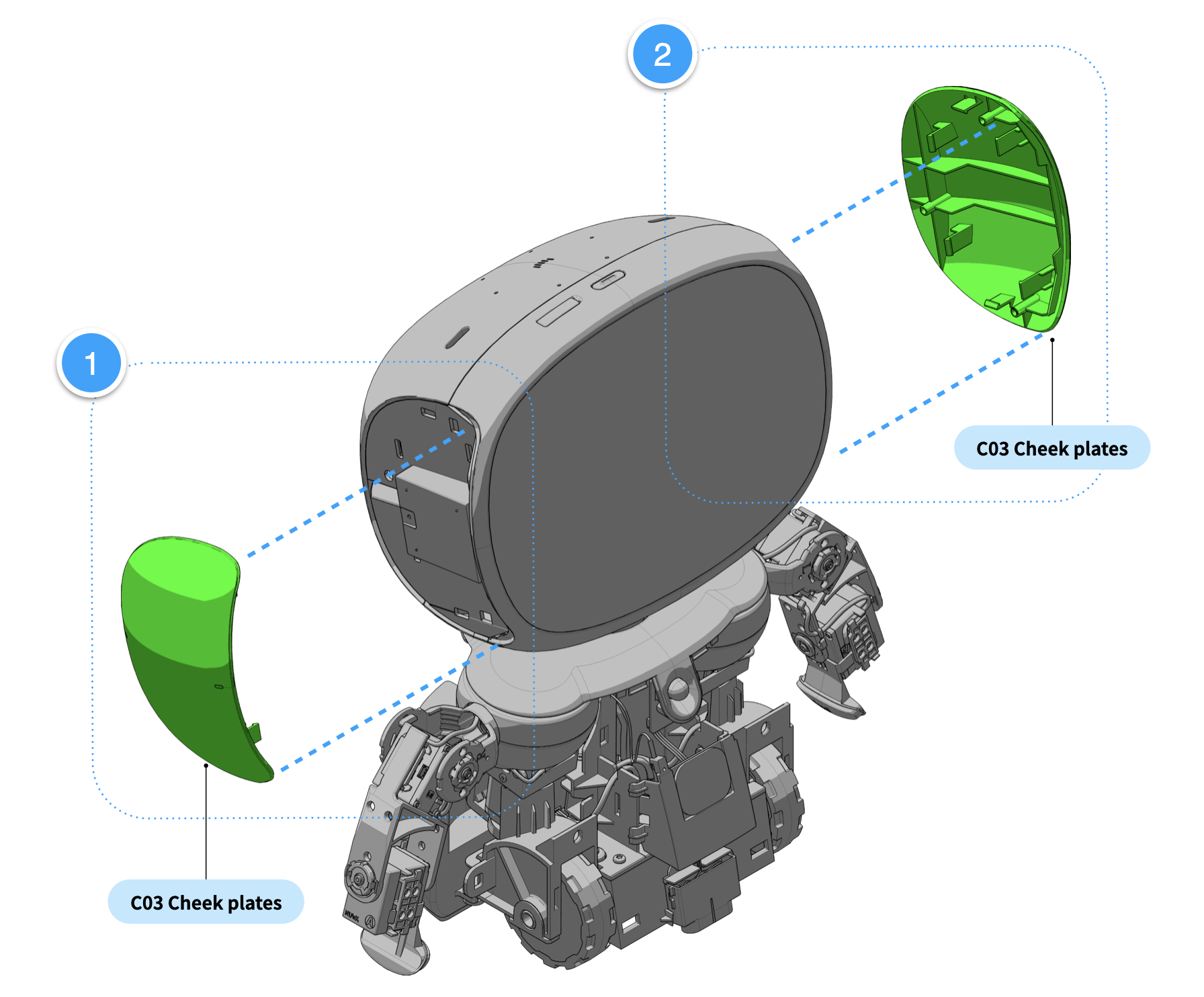

Line up tabs of**【C03 Cheek Plate】**with slots on right side of head as shown. Use moderate force to snap into place.
Line up tabs of**【C03 Cheek Plate】**with slots on left side of head as shown. Use moderate force to snap into place.

Cheek plates assembly finished!
