Product Box Contents

Product Box

Since DX is a build kit composed of several boxes, it doesn’t come with a box for the assembled robot. If you need to carry the robot around, or to send it back to us, please contact us by DM to purchase a box on our Facebook page.

What's Inside the Box

+ Zoom

① DX Box with parts list, manual, warranty, and support page flyer inside ② Box X | DX Head and Cover ③ Box Y｜Covers and Skeleton ④ Box Z | Arms and Miscellaneous Parts ⑤ Parts Tray | Servo motors, Screws, Tools, Charger, and more

If the instructional video does not appear, please refresh/reload the page, or click the link below:

https://youtu.be/LUxEqAzLnus

Box of Screws/Tool Box

As shown, the tool/screw box contains all the fasteners needed to assemble the DX along with tape strips (two kinds), three screw drivers, a tweezer, and a snap-fastener pry tool.

+ Zoom

Parts List

+ Zoom

Please check the box contents against the parts list below.

⚠ Please use care when removing parts from the packaging. The package can be quite tight, and some pieces are fragile, particularly before being incorporated into an assembly. Consider using the included pry bar to gently lift parts out of the foam packaging.

⚠ In the rare case of missing or damaged parts, please contact us via Facebook Messenger ™ on our Facebook ™ page.

⚠ Please read through the paper instruction manual and keep it as a reference. We also recommend using the online assembly guide to build and safely use your RobotCreator DX.

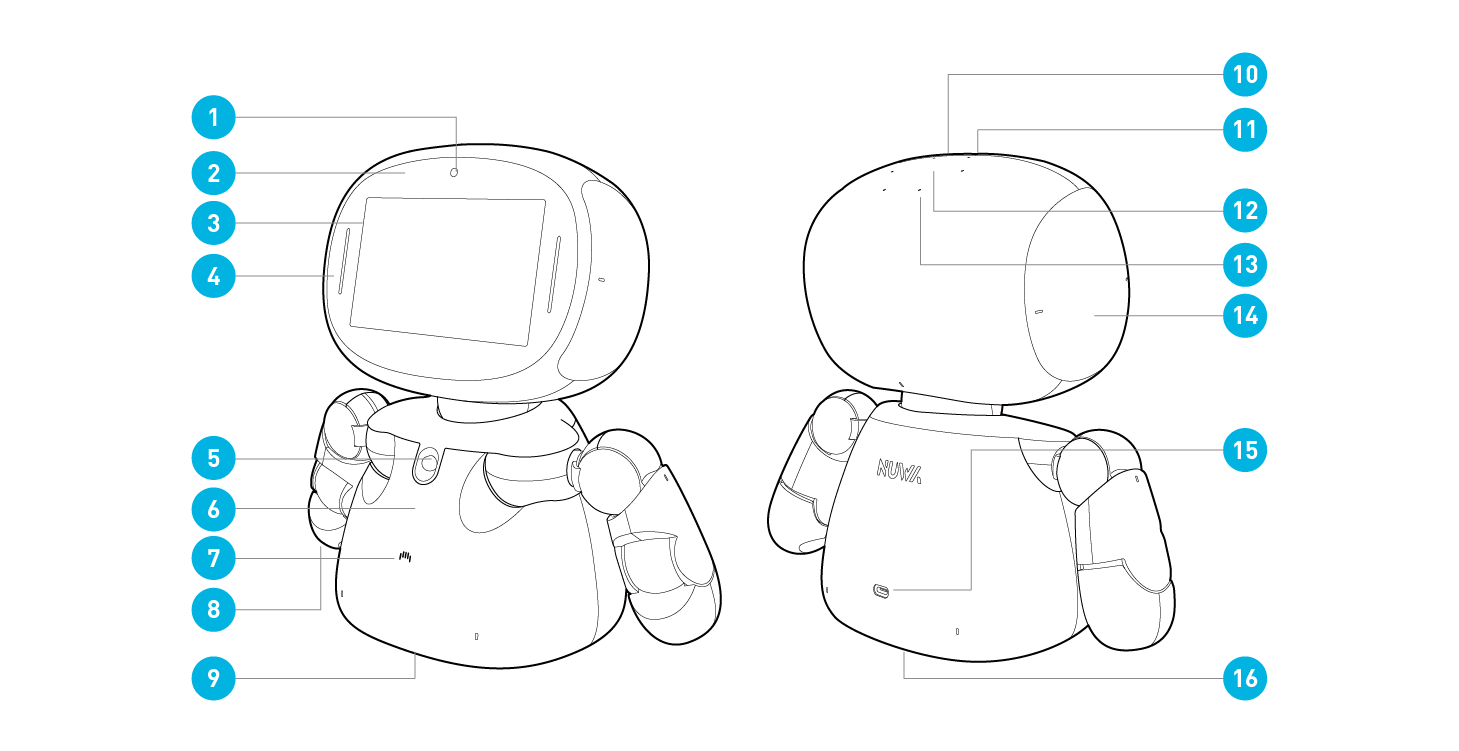

Product Map

+ Zoom

❶ Camera ❷ LED Power Indicator ❸ 7″ Touch Panel ❹ Listening LED Indicator ❺ PIR Sensor ❻ Status LED Indicator ❼ Touch Area (Belly) ❽ Touch Area (Hands) ❾ IR Drop Sensor ❿ Home (Power) Button ⓫ Micro SD Card Slot ⓬ Touch Area (Head) ⓭ Microphone array ⓮ Touch Area (Cheeks) ⓯ Charging Port ⓰ Speaker

Specifications
